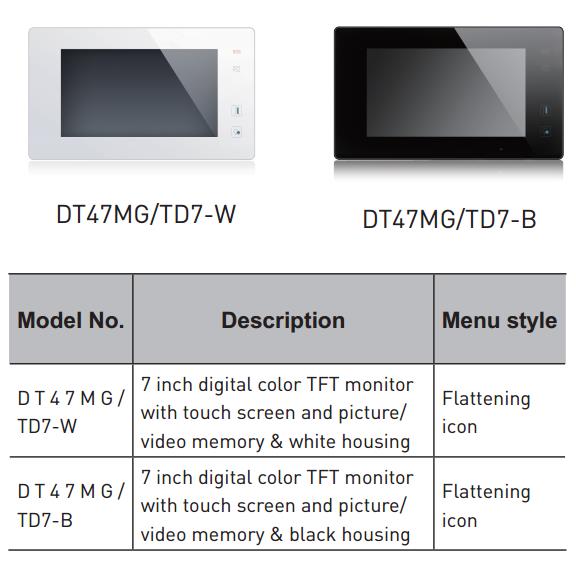

Ordering Information


  • New flattening icon design;
  • SMS service&Converstaion with mobile phone;
  • *Free short message communication among monitors;
  • *Actively call monitor via GSM module;
  • Host&Guest voice message leave function;
  • Compatible with fisheye door station & Zoom in/out function;
  • Image quad split function via DT-QSW;
  • PIR motion detector via specified door station;
  • *Auto-recording what happened by the door;
  • *Activiate relay actuator(light on or unlock automatically);
  • *Alert announce when somebody gets close;


  • Power supply for indoor monitor: DC 20~28V;
  • Power Consumption: Standby 12.4mA; Working 270mA;

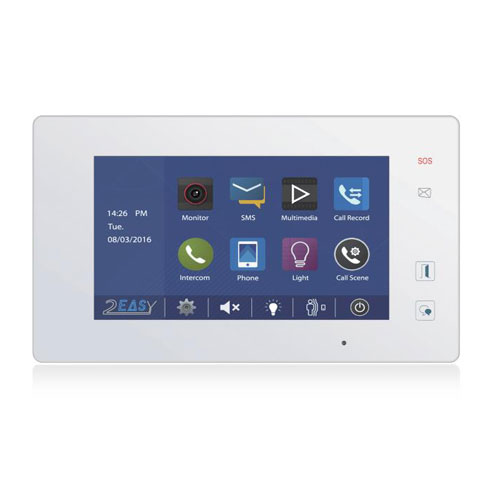

  • Display Device: 7” Digital TFT screen with 16:9 rate;
  • Resolution: 800*3(R.G.B)x480 pixels;
  • Video singal: 1Vp-p, 75Ω, CCIR standard
  • Wiring: 2 wires (non-polarity);
  • Monitor Dimension: 131(H)×225(W)×18(D)mm;
