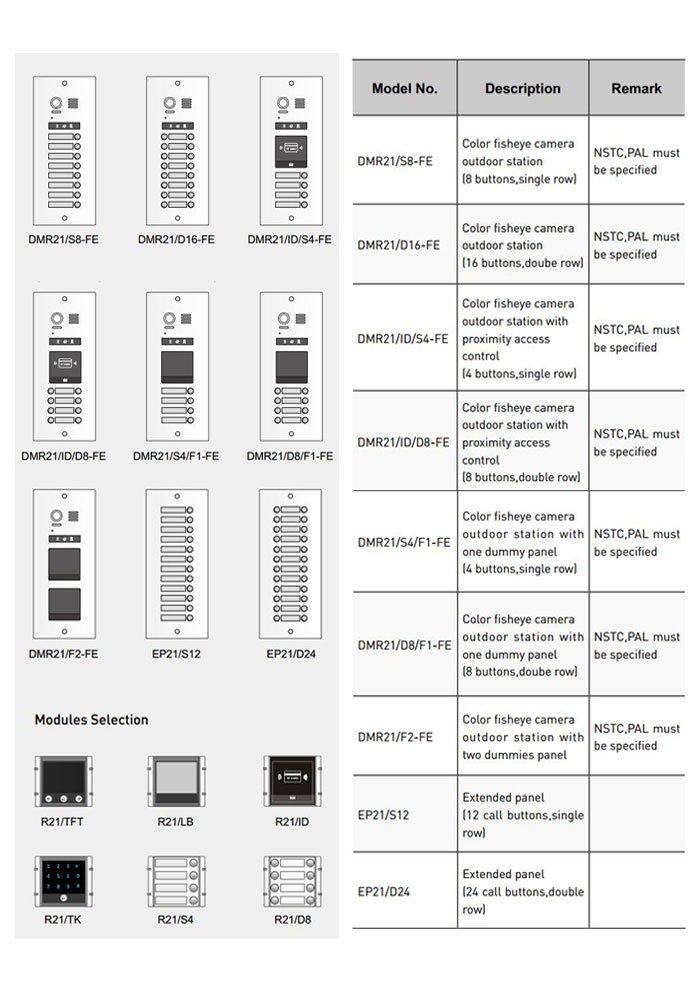

Ordering Information

Features

• 170 degree fisheye high resolution Camera;
• Synthesis language reminder;
• Large capacity(max.128 apartments via BDU);
• Reliable proximity access;
• Colorful LED for work status indicators;
• Diverse module configurations;
• Name list via TFT screen display;
• Compatible with all DT two wire system models.
• Support 2nd lock via DT-RLC;
• Only support flush mounting;
• Anti-tamper screw installation.

Specification

• Power supply: DC24V;
• Camera:1/2.7’’ fiheye camera,170o wide angle
• Power consumption: Standby 36.8mA;Working status 121.4mA;
• Screen: 3.5 inch TFT ;
• Resolution: 320(R, G, B)X240 pixels;
• Wiring: 2 wires (non-polarity);
• Dimension: 316(H)×133(W)×46(D)mm
